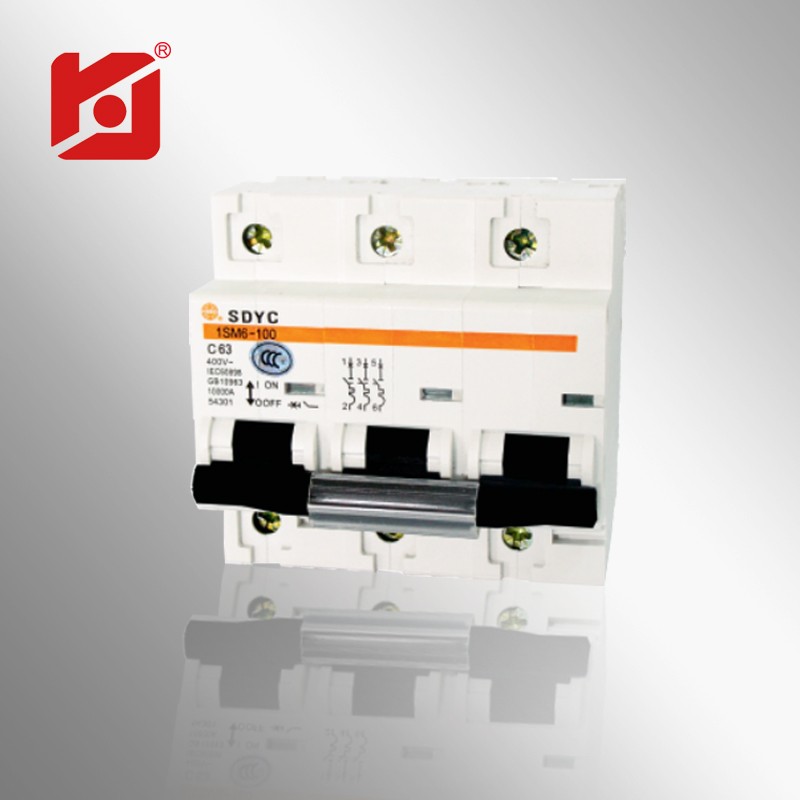

1SM6-100 small molded case circuit breaker

1SM6-100 high breaking small molded case circuit breakers (hereinafter referred to as circuit breakers) for AC 50Hz / 60Hz, rated voltage single-phase 220 / 230V, three-phase 380 / 400V and below, rated current up to 100A of the lighting distribution system or motor power distribution system, as the line overload and short circuit protection, but also in the normal circumstances, infrequent on-off electrical equipment and lighting lines.

Compare
分类：

产品描述

Use

1SM6-100 high breaking small molded case circuit breakers (hereinafter referred to as circuit breakers) for AC 50Hz / 60Hz, rated voltage single-phase 220 / 230V, three-phase 380 / 400V and below, rated current up to 100A of the lighting distribution system or motor power distribution system, as the line overload and short circuit protection, but also in the normal circumstances, infrequent on-off electrical equipment and lighting lines.

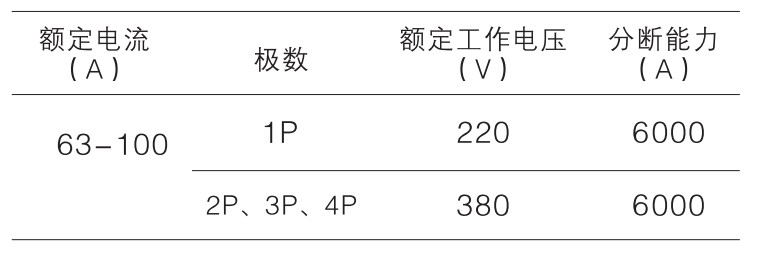

Technical Parameters

Rated current: 63,80,100 A

Rated voltage: 220 / 230V, 380 / 400V AC

Breaking capacity: in line with GB10963 standard

Tripping characteristics:

C-type curve: D-curve: mechanical life: 4000 times

Wiring: with clamps the terminal blocks, cable cross-section of up to 35mm2

Auxiliary devices and accessories: can be equipped with various auxiliary devices, including leakage protection.

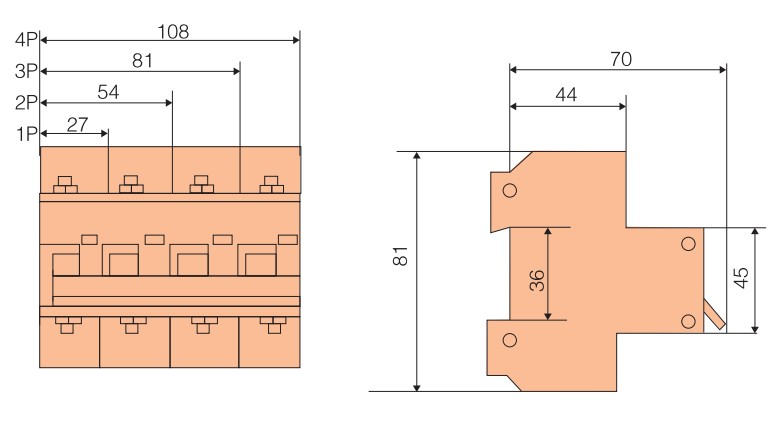

Installation dimensions and dimensions
