Use

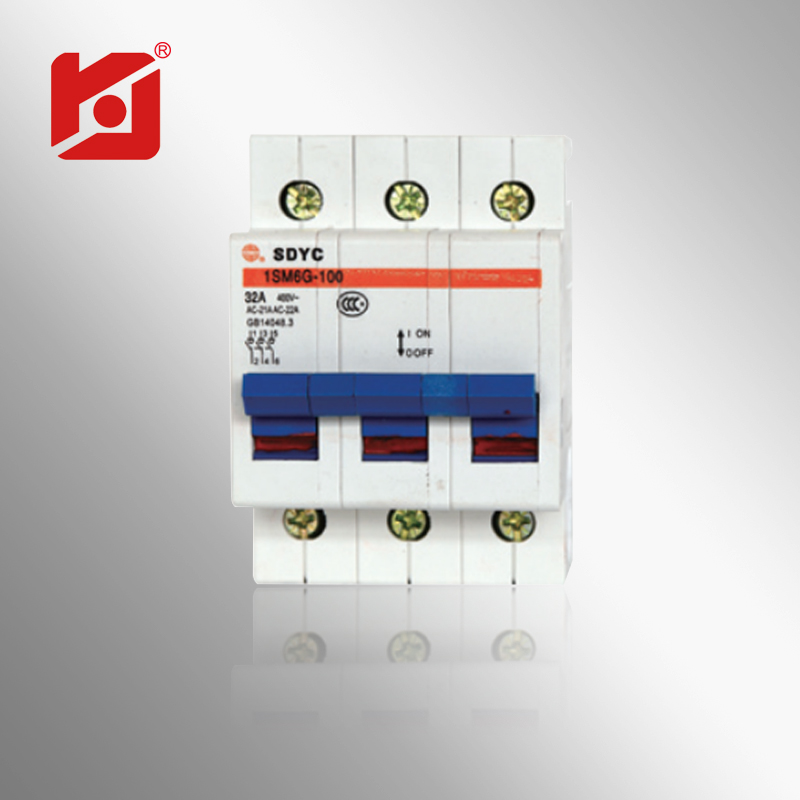

1SM6G-100 series isolation switch for AC 50Hz, rated voltage single-phase 230V, 400V or 48V DC (110V 2-pole series) of the power distribution circuit and the motor circuit for breaking and connected purposes. Reliable contact indication. Products comply with IEC60947-3 and GB14048.3 standards.
Technical Parameters
rated current: 32,63,80,100 A
Rated voltage: AC230,400V or DC48V (110V 2-pole series connection)
Breaking capacity: in line with GB10963 standard
Number of poles: 1P, 2P, 3P, 4P
Mechanical life: In = 32A 300000 times In = 63A, 80A 200000 times In = 100A 100000 times
Electrical life
AC-22 C0SΦ = 0.8
In = 32A 30000 times
In = 63A, 80A 20,000 times
In = 100 A 10000 times
Rated short - time withstand current 1s: 20In
Wiring: The terminal with a clamp, you can connect the wire cross-section
35mm2 and below.

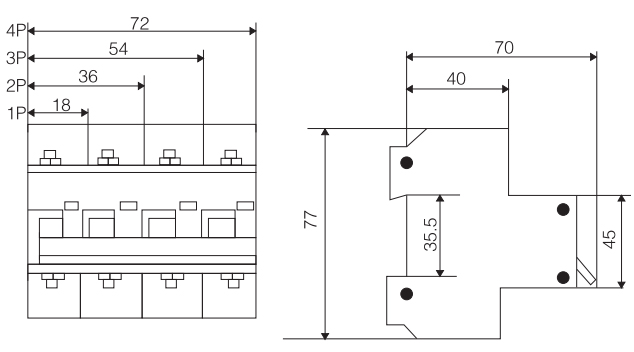

Installation dimensions and dimensions
