Pluggable DC Surge Protection Devices 20kA per pole 8/20μs 12Vdc KDY-20-D12

产品描述

• Main Features
• Product Parameter
• Electrical Diagram
• Wiring Diagram
• Dimension
•  *Installation Notes
•  Model Selection Table

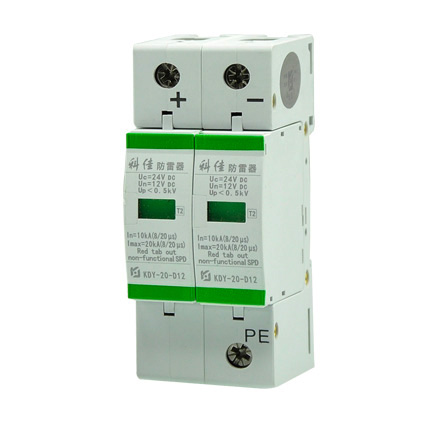

KDY-20-D12(8/20µs)

KDY-20-D12 type 2 DC surge arresters/SPD is designed to protect DC load current, installs at or within equipment such as DC servo mechanisms, fire alarm monitoring systems, security system controls, telecom and datacom systems, microwave communication system, etc. to provide compact, heavy duty surge suppression. It utilizes high energy metal oxide varistors/MOV, providing a protection in CM/DM(L-PE,N-PE, L-N). These SPD are DIN rail compatible and is connected in parallel on the line to be protected.



Main Features

• Type 2 surge protector for DC power system
• Imax - 20kA/pole (8/20 waveform)
• Un – 12Vdc
• Up – 500V @ In
• Fast clamp response, under 25ns
• No leakage, no operating currents
• High energy anti-surge components MOV
• State-of-the-art surge protection technology
• Failure status indicator, green/red
• Telesignailsation indicator for remote failure alerts (optional)
• DIN rail mounting, pluggable module, convenient replacement



Product Parameter

Model No.	KDY-20-D12
ELECTRICAL CHARACTERISTICS
Network	DC or PV network 12V DC
Protection Mode	CM/DM
Nominal PV Operating Voltage(Un)	12V DC
Maximal PV Operating Voltage(Uc)	24V DC
Nominal Discharge Current (In)[8/20us]	10kA(8/20µs)
Maximal Discharge Current (Imax)[8/20us]	20kA(8/20µs)
Voltage Protection Level at In (Up)	≤500V
Response Time (tA)	25ns
Status Indicator	Green/Red tabs
Telesignalisation Remote Indicator(TS)	optional(1NO+1NC)
Maximal Back-up Fuse	16-25A gG
Follow Current	none
MECHANICAL CHARACTERISTICS
Connection Cross-section (min.)	4mm2 solid
Connection Cross-section (max.)	25mm2 stranded
Connection to Network	terminals
Place of Installation	indoor
Mounting	35mm2 DIN rails acc. to EN 60715
Enclosure Material	thermoplastic acc. to UL94 V-0
Enclosure Color	white
Degree of Protection	IP20
Test Standard	GB 18802.1-2011 / IEC 61643-1
ENVIRONMENTAL CHARACTERISTICS
Stocking Temperature	-40℃~+80℃ (-104℉-176℉)
Operating Temperature	-40℃~+80℃ (-104℉-176℉)
Relative Humidity (RH)	5% - 95% (non-condensing)
Operating Altitude	<3000m (9843ft)
Dimension(L*W*H)	36mm*63mm*91mm
Weight(G/W)





Electrical Diagram



Wiring Diagram



Dimension



 *Installation Notes

1. Installation must be performed only by electrically skilled operator.
2. Disconnect power before installing, no hot-line operation is allowed, and better to under the guidance of professional electrician.
3. For best performance, mount protector in parallel with the equipment it is protecting as close as possible. (*Note: If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)
4. Use a circuit breaker in series with the protector.(*Note: if a breaker is not available, use a fused disconnect switch or a fuse block. Fuses should be time-delay type.)
5. Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.



 Model Selection Table

Model	Configuration
KDY-20-D12/2P	pluggable SPD, 20kA/pole, 8/20µs, for DC12V DC power system, 35mm DIN Rail
KDY-20-D24/2P	pluggable SPD, 20kA/pole, 8/20µs, for DC24V DC power system, 35mm DIN Rail
KDY-20-D48/2P	pluggable SPD, 20kA/pole, 8/20µs, for DC48V DC power system, 35mm DIN Rail
KDY-20-D110/2P	pluggable SPD, 20kA/pole, 8/20µs, for DC110V DC power system, 35mm DIN Rail
KDY-20-D220/2P	pluggable SPD, 20kA/pole, 8/20µs, for DC220V DC power system, 35mm DIN Rail
