NKP-TEL-2J
The NKP-TEL-2J surge protector is designed to protect data and communications equipment against transients caused by lightning, electrostatic discharge and ground surges that can enter equipment from the signal lines or chassis ground. The NKP-TEL-1 features in/out terminal blocks/RJ45/RJ11/RJ12 plugs for electric modems.
It uses a combination of MOV, 3-electrode gas discharge tube and fast clamping diodes to provide large discharge current capacity and ultrafast response time. It’s for use as secondary surge protection at the equipment level behind a primary protection environment.
Main Features
- ADSL/PSTN telephone line surge protector
- RJ11 connector
- Ultrafast response time <1ns
- Industrial plastic/Shielded enclosure
- Systematic use of MOV, 3-pole gas tube and fast clamping diode
Product Parameter
| Model No. | NKP-TEL-2J |
|---|---|
| ELECTRICAL CHARACTERISTICS | |
| Typical Application | Electric MODEM/RS232 |
| Nominal Operation Voltage(Un) | ≤12Vdc |
| Maximal Operation Voltage (Uc) | ≤18Vdc |
| Nominal Discharge Current (In) | 5kA (8/20μs) |
| Maximal Discharge Current (Imax) | 10kA (8/20μs) |
| Voltage Protection Level (Up) [X-X:10kV/5kA] | ≤1.1kV |
| Response Time (tA) | 1ns |
| Insertion Loss | ≤0.3dB (10MHz) |
| Max. Transmission Rate | 10Mbps |
| MECHANICAL CHARACTERISTICS | |
| Input Connector | terminal blocks |
| Output Connector | terminal blocks/RJ45/RJ11/RJ12 (optional) |
| Protection Circuit | 4 pins |
| Grounding Protection | PE line for grounding |
| Failure Indicator | / |
| Place of Installation | indoor |
| Mounting | 35mm2 DIN rails acc. to EN 60715 |
| Enclosure Material | thermoplastic, PA66 |
| Enclosure Color | green |
| Degree of Protection | IP20 |
| Test Standard | GB/T18802.21/IEC61643-21 |
| ENVIRINMENTAL CHARACTERISTICS | |
| Stocking Temperature | -5℃~+40℃(-41℉-104℉) |
| Operating Temperature | -20℃~+70℃ (-68℉-158℉) |
| Relative Humidity (RH) | 5% - 95% (non-condensing) |
| Operating Altitude | <3000m (9843ft) |
| Dimension(L*W*H) | 80mm*30mm*69mm |
| Weight(G/W) |
Electrical Diagram
Wiring Diagram
Dimension
NKP-TEL-2J/2J-S/2J-R/2J-RJ45
*Installation Notes
- Must disconnect power before installation, no hot-line operation is allowed, and better to under the guidance of professional electrician.
- For best performance, mount protector in serial with the equipment it is protecting as close as possible, and better to install one protector at each end of the data line.
- The ground wire on the product (if included) must be attached directly to the metal chassis of the equipment to be protected. The length of the grounded wire is not to exceed 11 inches.
- No special maintenance is needed, however regular inspection is needed, especially during storm seasons.
Model Selection Table
| Model | Configuration |
|---|---|
| NKP-TEL-2J | Electric MODEM Surge Protection Devices, terminal blocks/terminal blocks, 4 pins, 35mm DIN Rail |

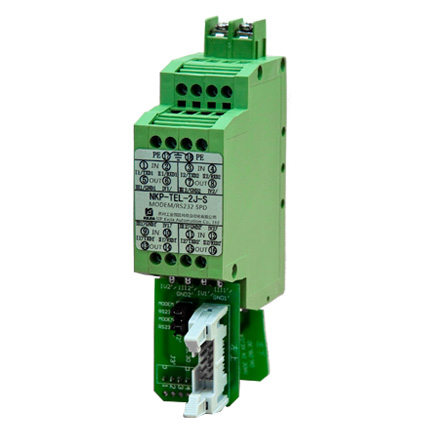

| NKP-TEL-2J-S | Electric MODEM/RS232 Surge Protection Devices, terminal blocks/10-pin RJ12, 2 lines switched, 35mm DIN Rail (patent) |

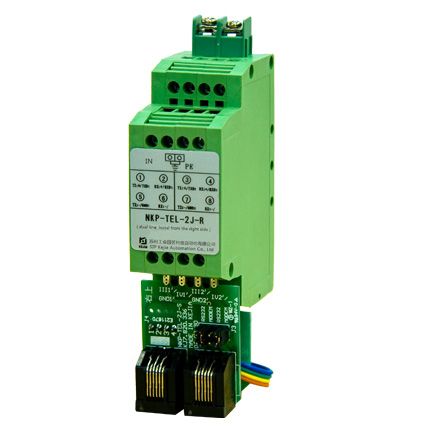

| NKP-TEL-2J-R | Electric MODEM/RS232 Surge Protection Devices, terminal blocks/6-pin RJ11, 2 lines switched, 35mm DIN Rail (patent) |

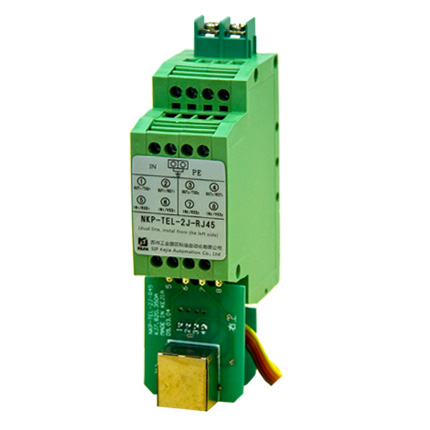

| NKP-TEL-2J-RJ45 | Electric MODEM/RS232 Surge Protection Devices, terminal blocks/8-pin RJ45, 2 lines switched, 35mm DIN Rail (patent) |
