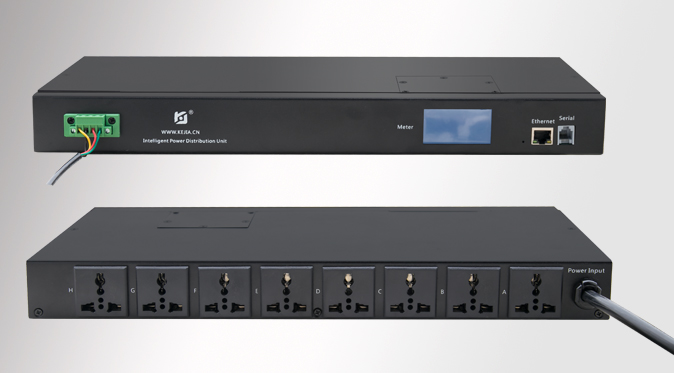

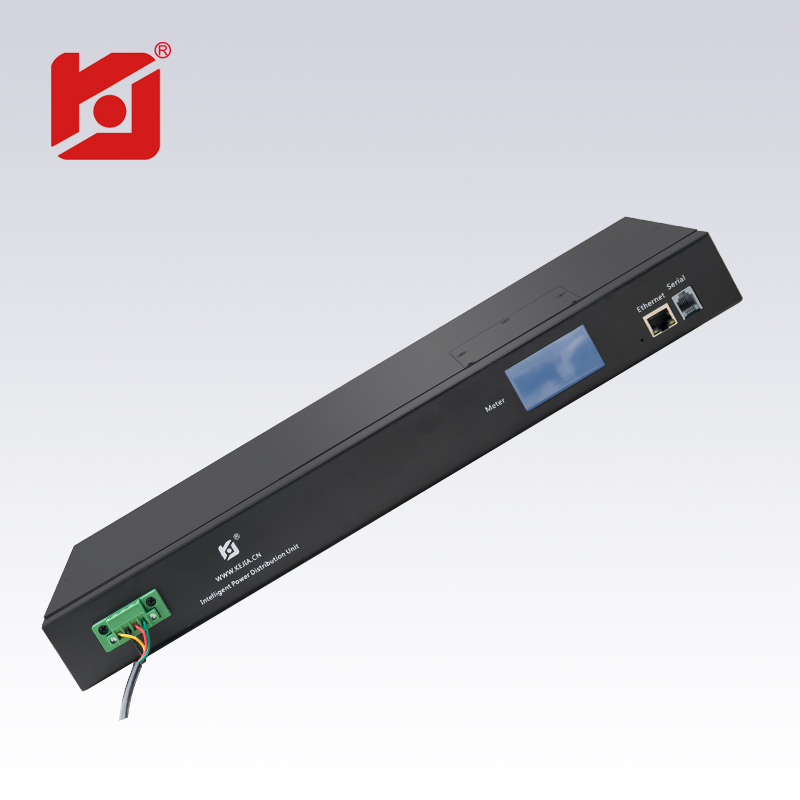

KEJIA intelligent power distributor

产品描述

Product introduction
The intelligent power divider is a very effective and practical monitor for remote power supply in the machine room. It also has the function of the extension line. So that managers can automatically grasp the power consumption from remote network, such as factory computer room, automatic control platform, server, router and other key equipment power supply.
The intelligent power distributor not only allows the administrator to access, open and close the outlet power from the remote terminal and interface, but also can get the current consumption information through the network and the local current meter, PDU.
The remote control function allows administrators to control the remote computer room equipment easy, if the remote device appears when the administrator, as long as through the network to the PDU socket of the power switch, can let the remote device restart, the normal operation of the equipment can not solve the situation.
When the current load exceeds the preset threshold, PDU will send the report to the designated account automatically and promptly by the way of web page alarm and trap, so that the administrator can get information in time and deal with it in time, so as to reduce unnecessary losses. PDU's management software can display all kinds of information of PDU, such as current load, power consumption and power operation, etc.

Product function
Build a web server; through a web browser, you can directly detect the real-time power consumption of the distributor.
The display can directly read the location of the URL.
Accurate digital meter to provide accurate power consumption of the equipment;
When the electricity consumption exceeds the set value, the warning manager will be sent out.
In the event of an electric power event, it can be handled through the webpage alarm and the Traps notification system manager.

SNMP MIB, network management system directly integrated monitoring;
The protection of overload and power failure can prevent the current overload caused by the fire of the wire and so on.
The volume is super thin, can be used with all kinds of cabinet.
Remotely control the switches and restarts of the various sockets;
Display the output switch icon to display the power supply of the distributor.
Support the boot order to start the power supply.

Technical parameter
routine
Output (8) IEC320 C13
Input (1) IEC320 C20 input; C19 to C20 power supply line, 3 meters
Protection (1) 16 AMP overcurrent protector
Communication Http, SNMP, DHCP, UDP, Telnet
Power monitoring (1) RJ45 access Ethernet
(1) RJ11 debugging interface
Input current range: 0A ~ 16A
Precision: +/-0.5%
operation
Input voltage 220V AC
Output voltage 220V AC
Frequency 50/60HZ full frequency
Maximum output current 10 Amp
Temperature 0 ~ 40 degrees centigrade
Humidity 0% ~ 90%
Size 131 x 432 x 44 mm
