产品描述

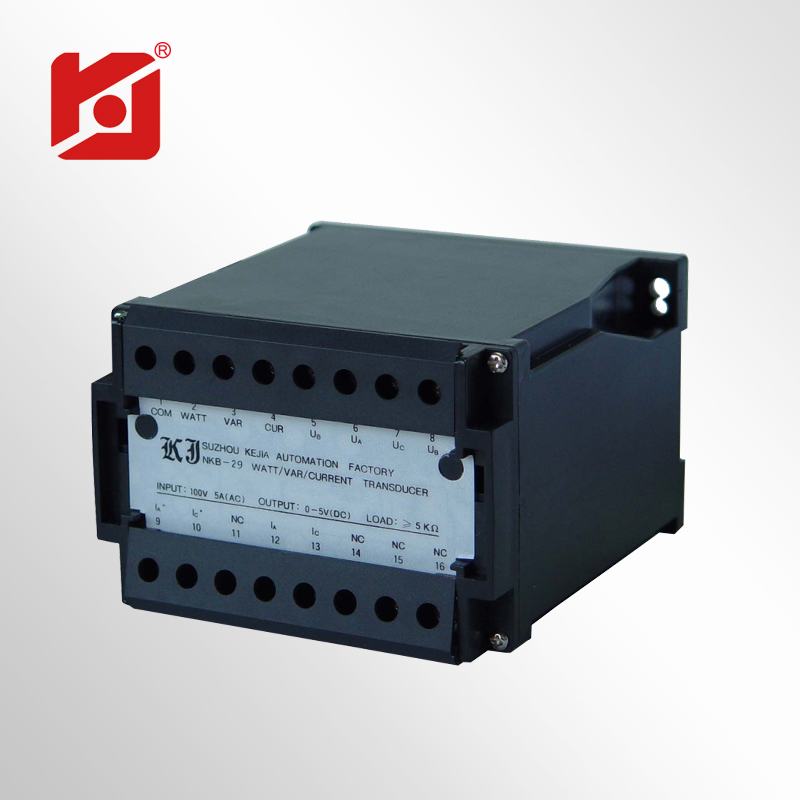

NKB-29S series phase angle transducer is mainly adopted to convert the real time phase angles of power grid to relevant analog signals in transformer substations and power stations, making it readable by RTU and other signal sampling devices.

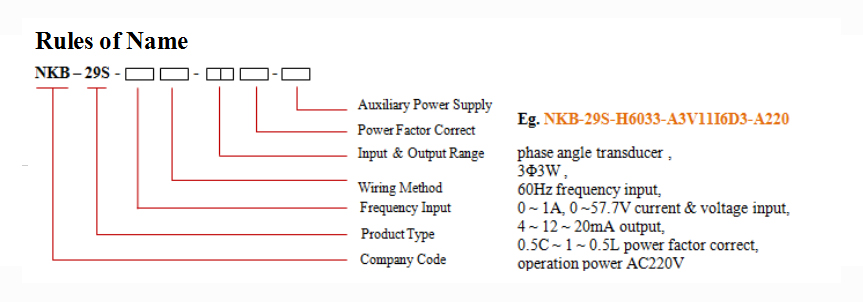

Technical Parameter
| GENERAL CHARACTERISTICS | |
| Accuracy | ±0.2%, ±0.5% |
| Rated Input Current Range | 0 ~ 1A, 0 ~ 5A, etc.(optional) |
| Rated Input Voltage Range | AC100V, AC380V, etc.(optional) |
| DC Output Range | 0-20mA, 4-20mA, 0-1V, 0-5V, 0-10V, etc. (optional) |
| Input Frequency Range | 50Hz ± 5Hz, 60Hz ± 5Hz, |
| Phase Angle | 60° ~ 0° ~ 60° |
| Auxiliary Power Supply | AC/DC 220V, etc. |
| Wiring Method | 1Φ2W, 3Φ3W, 3Φ4W |
| Output Ripple | < 1% (P-P) |
| Input Power Consumption | < 4VA |
| Withstand Voltage | ≥ 2.5kV |
| Influence of Temp. | when it’s within ruled operation temp. range, ±0.2% / ±0.5% allowable variation per ±20℃ |
| ENVIRONMENTAL CHARACTERISTICS | |
| Operation Temp. | -5℃ ~ +45℃ |
| Stock Temp. | -20℃ ~ +75℃ |
| Relative Humidity | <80% |
| Protection Level | IP 20 |
| Housing Material | |
| Mounting Method | 35mm DIN Rail |
| Unit Dimension(W*H*D) | 110*75*120mm |
