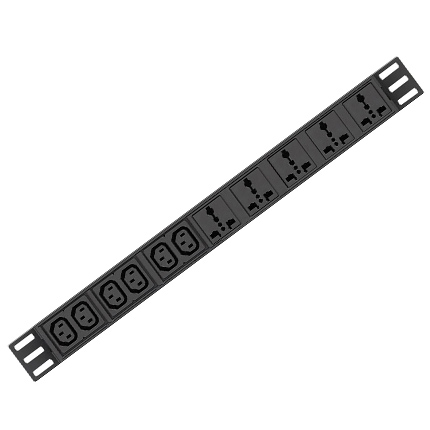

2.4kW Single-phase Basic PDU, 250V (6 C13, 5 universal outlets), 220-230V Input, 6.6ft Cord, 1U Horizontal

产品描述

• Brief Introduction
• Main Features
• Typical Application
• Product Parameter
• Digrams
• PDU "Model Number" Guides



Brief Introduction

KEJIA NKP-DY-U series basic PDUs(Power Distribution Units) offer reliable power distribution for critical IT equipments in server rooms, data centers, network closets, etc. It supplies continuous power, both single phase and 3 phase, from any UPS, generator or the public Grid power sources. It sports high-quality design, including AL housing and standard 19” rack mount installation. Various outlet types are available for special individual purposes.



Main Features

• Basic 2.4kW single-phase 32A 220-230V rack PDU
• 1U horizontal rack-mount installation(brackets)
• 11 outlets (6 C13, 5 universal outlets front)
• Black aluminum alloy housing



Typical Application

KEJIA NKP-DY-U series rack PDUs/basic PDUs is the ideal means of powering multiple loads in 19 inch rack-mount: internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement, etc. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipments.



Product Parameter

Model No.	NKP-DY-U-32a(32-L23+W5-L2)
PDU Type	Basic PDU
INPUT
Nominal Input Voltage	220V, 230V
Maximum Input Current	32A
Input Plug Type	N/A
Input Cord Length(m/ft)	2m/6.6ft (standard)
Input Phase	Single phase
OUTPUT
Output Capacity	2.4kVA(415/240V), 2.3kVA(400/230V), 2.2kVA(380/220V) 10A max per universal outlet, 10A max per C13 outlet
Frequency	50/60Hz
Output Receptacles	(6)C13, (5) universal outlet
Output Nominal Voltage	Single phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current	10A
Outlet Type	IEC320 C13, universal outlet 10A/250V
CIRCUIT PROTECTION
ON/OFF Switch	N/A
Circuit Breaker	N/A
Overload Protection	N/A
Power Status LED Display	N/A
OPERATIONAL ENVIRONMENT
Operating Temperature Range	0℃-40℃(0℉-104℉)
Storage Temperature Range	0℃-40℃(0℉-104℉)
Relative Humidity(RH)	0%-90%
Operating Elevation	<3000m(9873ft)
PHYSICAL
Housing Material	Aluminum alloy
Housing Color	Black
Unit Dimension(HWD/mm)	496*44.5*66
Unit Weight(NW/kg)	1.4
Shipping Dimension(HWD/mm)	550*110*90
Shipping Weight(GW/kg)	1.5
PDU Mounting Form	1U Horizontal
Package Includes	Rack mounting brackets, product manual
TEST STANDARDS
Product Test	CE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals	CE, RoHS
WARRANTY
Product Warranty Period	2-year warranty





Digrams



PDU "Model Number" Guides
