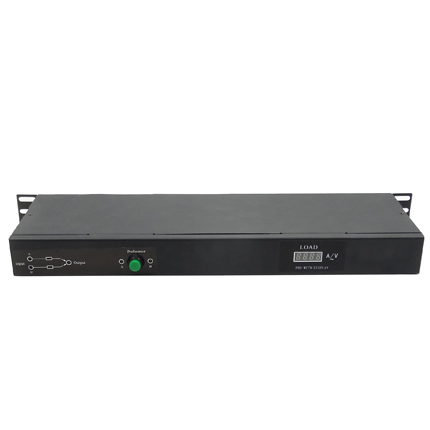

3.84kW Auto-transferred Switch, Metered ATS, 250V (8 C13, 1 C19), 220-230V/16A Input, Current/Voltage Meter, 7ft Cord, 1U Horizontal

产品描述

• Brief Introduction
• Main Features
• Typical Application
• Product Parameter
• Digrams
• PDU "Model Number" Guides

Automatic Transfer Switch (ATS)

Features & Functions	Basic	Metered	Monitored	Switched
auto-transfer between primary and secodary power sources	√	√	√	√
reliable power distribution	√	√	√	√
local power meter(A/V)		√	√	optional
local ENV meter(Temp./RH)		optional	optional	optional
remote power monitoring via network (A/V/KWh...)			√	optional
remote ENV monitoring via network (Temp./RH)			optional	optional
remote switch/control on PDU level via network				√
remote switch/control on outlets level via network				optional



Brief Introduction

KEJIA NKP-DY-SU series ATS(Automatic Transfer Switch) rack mount PDUs offer a redundant power option for single-corded network devices. Dual input cords support separate connection to primary and secondary power sources. The ATS will normally supplies continuous power to all outlets as derived from the primary mains. If the primary power source becomes unstable or failed, the ATS will switch over automatically to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds, ensuring an uninterrupted power supply in data centers, telecom rooms, hospitals, banks, etc.



Main Features

• 3.84kW 16A 220-230V ATS
• Visual current/voltage meter
• short transfer time <25ms
• LED indicator for power status

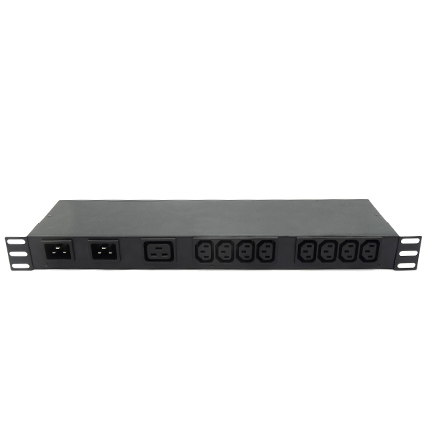

• 9 outlet (8 C13, 1 C19 rear), 2 inlets (2 C20 rear)
• 1U horizontal rack-mount installation(brackets)
• Black aluminum alloy housing



Typical Application

Auto-Transfer Switch / Switched PDU is ideal for providing switched outlet functionality and redundant A/B power to single-corded network equipment



Product Parameter

Model No.	NKP-DY-TSU-16a(16IU-L42+H1-2L2H)
PDU Type	ATS/metered
INPUT
Nominal Input Voltage	220V, 230V
Maximum Input Current	16A
Input Receptacles	(2) C20
Inlet Type	IEC320C20
Input Cord Length(m/ft)	2.13m/7ft (standard)
Input Phase	Single phase
OUTPUT
Output Capacity	3.84kVA(415/240V), 3.68kVA(400/230V), 3.52kVA(380/220V) 16A max per C19, 10A max per C13
Frequency	50/60Hz
Output Receptacles	(8) C13, (1) C19
Output Nominal Voltage	Single phase 240V(415V), 230V(400V), 220V(380V)
Output Maximum Current	16A
Outlet Type	IEC320 C19, IEC320 C13
CIRCUIT PROTECTION
Overload Protection	(2) 20A overload protector
LED Indicator	(2) red LED for input power status;
	(2) green LED for output power status
FUNCTION
Auto-transferred Switch	(A: primary power source, B: secondary power source )
	(1) both primary (A) and secondary (B) power sources are available. A is set as default mains. If A becomes unstable or failed, it will switch over automatically to B until A is restored and stable
	(2) press the green button for once, it switches over to B as power source
	(3) press the green button for twice, it switches over to A again as power source
Transfer Time	<25ms
Current Meter	3-Digits Seven Segments for True RMS Meter; 0-20A (±2%/±0.1A)
Voltage Meter	170-264V(±2%/±0.1V)
OPERATIONAL ENVIRONMENT
Operating Temperature Range	0℃-40℃(0℉-104℉)
Storage Temperature Range	0℃-40℃(0℉-104℉)
Relative Humidity(RH)	0%-90%
Operating Elevation	<3000m(9873ft)
PHYSICAL
Housing Material	Aluminum alloy
Housing Color	Black
Unit Dimension(HWD/mm)	485*90*120
Unit Weight(NW/kg)	3.9
Shipping Dimension(HWD/mm)	535*415*245
Shipping Weight(GW/kg)	4.2
PDU Mounting Form	1U Horizontal
ACCESSORIES
Package Includes	Rack mounting brackets, product manual
TEST STANDARDS
Product Test	CE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals	CE, RoHS
WARRANTY
Product Warranty Period	2-year warranty
