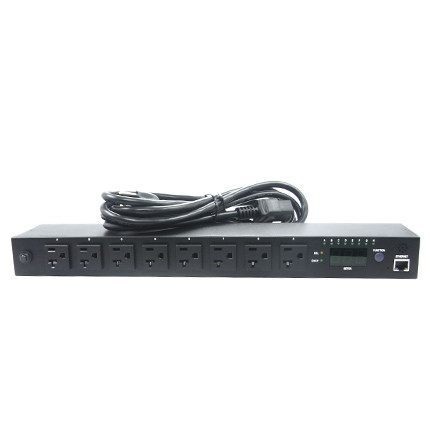

1.2kW Switched intelligent PDU, 120V (8 NAME 5-15R), 120V/10A Input, Remote Power Management via Ethernet, 7ft Cord, 1U Horizontal

产品描述

• Brief Introduction
• Main Features
• Typical Application
• Product Parameter
• Digrams
• PDU "Model Number" Guides

Intelligent PDU(Power Distribution Unit)

Features & Functions	Metered	Monitored	Switched
reliable power distribution	√	√	√
local power meter(A/V)	√	√	optional
local ENV meter(Temp./RH)	optional	optional	optional
remote power monitoring via network (A/V/KWh...)		√	optional
remote ENV monitoring via network (Temp./RH)		optional	optional
remote switch/control on PDU level via network			√
remote switch/control on outlets level via network			optional



Brief Introduction

KEJIA NKP-DY-TU series switched intelligent PDUs(Power Distribution Units) offer real-time monitoring on electricity factors for critical IT equipments via local digital meter or remote network systems. Power alert or event log supports custom notification of user-specified remote conditions via email, SNMP, Web, DHCP interface. Ensures a safer, greener and more convenient power distribution environment in unmanned server rooms, data centers, network closets, etc. High-quality design includes AL housing and standard 19” rack mount installation.



Main Features

• 1.2kW 10A 120V switched intelligent PDU
• 1U horizontal rack-mount installation(brackets)
• 8 outlet (8 NEMA 5-15R rear), 1 inlet (1 C20 rear)
• Meter: True RMS Current Meter/Voltage/Frequency/Power Factor/Active Power/Apparent Power/Total kWh/Sub-total kWh.
• Power Monitor: Per Outlet Output Current and Total Power Monitoring by Meter, Web, SNMP, Free Bundle Software
• Protocols: Http, Https, SNMP, DHCP, UDP
• Outlet Control: Individual, Group, Schedule, Auto Ping
• Power Delay: Power On/Off Sequence can be Defined
• Alarm Thresholds: User-Defined Alarm Thresholds for Warning and Overload
• Event Alert: Email, Trap, Audible Alarm
• Temp./Humidity : Option Accessory



Typical Application

Ideal for network configurations in datacenters and heavily configured equipment racks.



Product Parameter

Model No.	NKP-DY-TU-10a(NPDU-1080)
PDU Type	Intelligent PDU/Switched
INPUT
Nominal Input Voltage	100V, 120V
Maximum Input Current	10A
Input Receptacles	(1) IEC320 C20
Inlet Type	IEC320 C20
Input Cord	IEC C19 to IEC C20 extension power cord
Input Cord Length(m/ft)	2.13m/7ft (standard)
Input Phase	Single phase
OUTPUT
Output Capacity	1kVA@100V, 1.2kVA@120V 15A max per NAME 5-15R
Frequency	60Hz
Output Receptacles	(8) NAME 5-15R
Output Nominal Voltage	Single phase 100V, 120V
Output Maximum Current	10A
Outlet Type	NAME 5-15R
CIRCUIT PROTECTION
Overload Protection	N/A
LED Indicator	SSL: (1) YELLOW LED
	DHCP: (1) GREEN LED
	INPUT STATUS:(8) RED LED
	OUTPUT STATUS:(2) GREEN LED
COMMUNICATION
Network Protocol	Http(s), SNMP, DHCP,UDP
Network Interface	RJ45 connector to Ethernet
PDU ID	1 digital seven-segments for PDU identification
Environmental Interface	(1) RJ11 for ENV (extensional)
Energy Metering	Voltage(V),Current(A), Energy(kWh), Frequency, Active Power(VA), Apparent Power (VA)
Metering Range and Accuracy	Voltage: ± 2% @ 90V~260V
	Active Power: ± 2% @ 50W~5000W
	Apparent Power: ± 2% @ 50VA~5000VA
	Frequency: ± 2% @ 45~65Hz
	Power Factor: ± 0.02 @ 0.5~1.0
	Energy(kWh): Range: 0.001kWh ~ 99999.999kWh; Precision: ±2% @ 50W~5000W, kh=1.0
	Current: ±2%/±-0.1AMP @ 0A ~ 20 A
Onboard Display	3 Digital Seven-segments for True RMS Meter
OPERATIONAL ENVIRONMENT
Operating Temperature Range	0℃-40℃(0℉-104℉)
Storage Temperature Range	0℃-40℃(0℉-104℉)
Relative Humidity(RH)	0%-90%
Operating Elevation	<3000m(9873ft)
PHYSICAL
Housing Material	Aluminum alloy
Housing Color	Black
Unit Dimension(HWD/mm)	482*44.5*95
Unit Weight(NW/kg)	2
Shipping Dimension(HWD/mm)	550*430*360
Shipping Weight(GW/kg)	2.2
PDU Mounting Form	1U Horizontal
ACCESSORIES
Package Includes	Rack mounting brackets, product manual, IEC C19 to IEC C20 extension power cord
TEST STANDARDS
Product Test	CE-LVD, CE-EMC, RoHS-2011/65/EU compliant
CERTIFICATION
Regulatory Approvals	CE, RoHS
WARRANTY
Product Warranty Period	2-year warranty





Digrams

..............
