KDY-20-D600/2P(8/20µs)

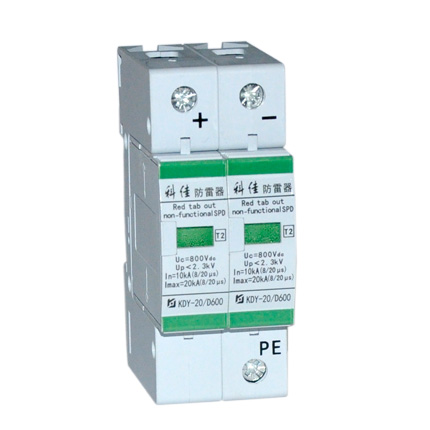

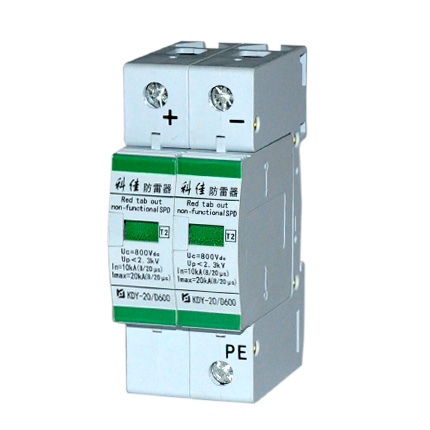

KDY-20-D600/2P type 2 solar PV surge arresters/SPD is designed to protect DC powered equipments against lightning surge voltages in photovoltaic power supply network, such as inverters, combiner boxes and charge controllers. It utilizes high energy metal oxide varistors/MOV, providing a protection in CM/DM(L-PE, N-PE, L-N).
Main Features
- Type 2 surge protector for photovoltaic system
- Imax - 20kA/pole (8/20 waveform)
- Un - 600V DC
- Up -2.3kV @ In
- Fast clamp response, under 25ns
- No leakage, no operating currents
- High energy anti-surge components MOV
- State-of-the-art surge protection technology
- Failure status indicator, green/red
- Telesignailsation indicator for remote failure alerts (optional)
- DIN rail mounting, pluggable module, convenient replacement
Product Parameter
| Model No. | KDY-20-D600/2P |
|---|---|
| ELECTRICAL CHARACTERISTICS | |
| Network | PV network 600V DC |
| Protection Mode | CM/DM |
| Nominal PV Operating Voltage(Un) | 600V DC |
| Maximal PV Operating Voltage(Uc) | 800V DC |
| Nominal Discharge Current (In)[8/20us] | 10kA(8/20µs) |
| Maximal Discharge Current (Imax)[8/20us] | 20kA(8/20µs) |
| Voltage Protection Level at In (Up) | <2.3kV |
| Response Time (tA) | 25ns |
| Status Indicator | Green/Red tabs |
| Telesignalisation Remote Indicator(TS) | optional(1NO+1NC) |
| Maximal Back-up Fuse | 16-25A gG |
| Follow Current | none |
| MECHANICAL CHARACTERISTICS | |
| Connection Cross-section (min.) | 4mm2 stranded |
| Connection Cross-section (max.) | 25mm2 stranded |
| Connection to Network | terminals |
| Place of Installation | indoor |
| Mounting | 35mm2 DIN rails acc. to EN 60715 |
| Enclosure Material | thermoplastic acc. to UL94 V-0 |
| Enclosure Color | white |
| Degree of Protection | IP20 |
| Test Standard | GB 18802.1-2011 / IEC 61643-1 |
| ENVIRONMENTAL CHARACTERISTICS | |
| Stocking Temperature | -40℃~+80℃ (-104℉-176℉) |
| Operating Temperature | -40℃~+80℃ (-104℉-176℉) |
| Relative Humidity (RH) | 5% - 95% (non-condensing) |
| Operating Altitude | <3000m (9843ft) |
| Dimension(L*W*H) | 36mm*63mm*91mm |
| Weight(G/W) |
Electrical Diagram
Wiring Diagram
Dimension
*Installation Notes
- Installation must be performed only by electrically skilled operator.
- Disconnect power before installing, no hot-line operation is allowed, and better to under the guidance of professional electrician.
- For best performance, mount protector in parallel with the equipment it is protecting as close as possible. (*Note: If protector is to be located outdoors and exposed to elements, mount protector inside a suitable weatherproof enclosure.)
- Use a circuit breaker in series with the protector.(*Note: if a breaker is not available, use a fused disconnect switch or a fuse block. Fuses should be time-delay type.)
- Green tab, normal work status, Red tab, failure status, need to be replaced rapidly.
Model Selection Table
| Model | Configuration |
|---|---|
| KDY-20-D600/2P | pluggable solar PV SPD, 20kA/pole, 8/20µs, for DC600V solar photovoltaic power system, 35mm DIN Rail |
| KDY-40-D600/2P | pluggable solar PV SPD, 40kA/pole, 8/20µs, for DC600V solar photovoltaic power system, 35mm DIN Rail |
| KDY-20-D900/2P | pluggable solar PV SPD, 20kA/pole, 8/20µs, for DC900V solar photovoltaic power system, 35mm DIN Rail |
| KDY-40-D900/2P | pluggable solar PV SPD, 40kA/pole, 8/20µs, for DC900V solar photovoltaic power system, 35mm DIN Rail |
| KDY-40R-D1000/3P | pluggable solar PV SPD, 40kA/pole, 8/20µs, remote signaling for failure alerts, for DC1000V solar photovoltaic power system, 35mm DIN Rail |
