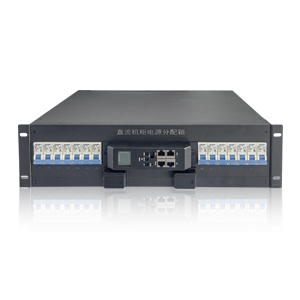

安装应用 The Cabinet Power Distribution Box (Rack Top Unit) is a core power distribution device designed for overhead installation in communication, transportation, fire safety, power, and industrial facilities. It supports single or dual -48V DC redundant input, provides multiple independent output circuits, and integrates surge protection, overcurrent/short-circuit automatic shutdown, audible/visual power-failure alarms, and real-time voltage/current monitoring. Output ports, IP rating, and alarm configurations are customizable to ensure safe, reliable, and orderly power distribution across diverse applications.

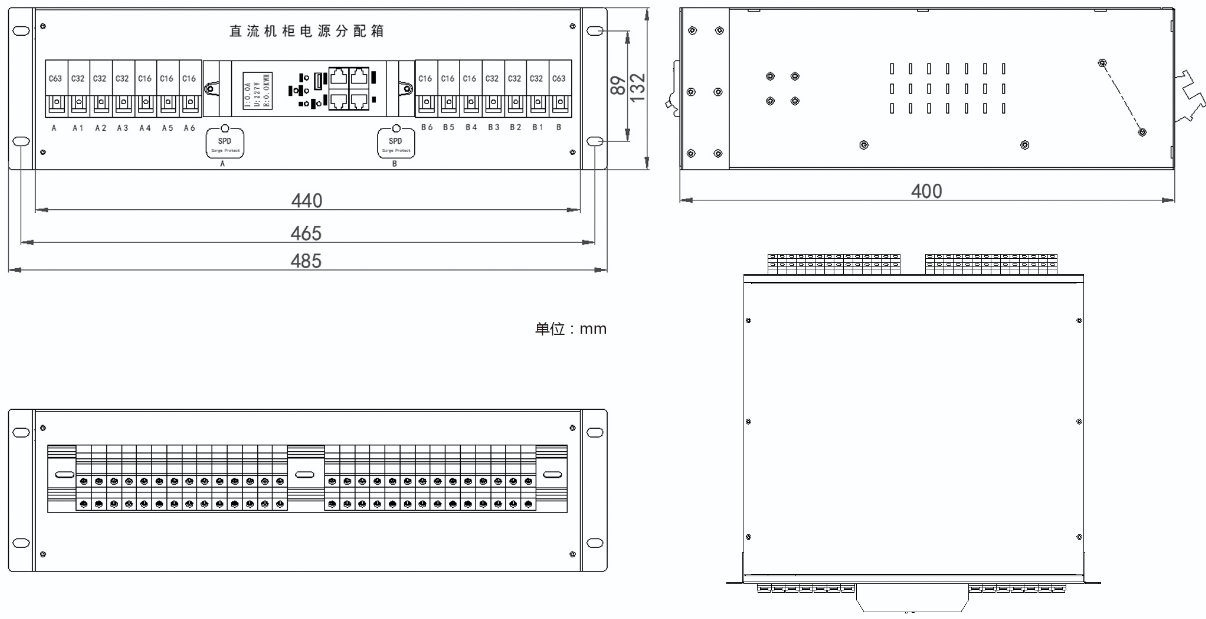

Product Dimension Drawing
Technical Parameters（技术参数） | Item | Description | Value |
| INPUT | Rated Input Voltage | DC -48V |
| Max Load Current | 63A | |
| Power Input Mode | Dual-input | |
| Input Parameter Monitoring | Current, Voltage, Energy, Active Power | |
| Input Terminal Type | UK16N | |
| OUTPUT | Output Terminal Type | UK10N, UK6N terminal outputs |
| Rated Output Voltage | DC -48V | |
| Rated Output Current | 32A, 16A | |
| Output Parameter Monitoring | Current, Active Power, Voltage, Energy | |
| DISPLAY | LED | Running / Alarm indicator |
| LCD | LCD display, 128×64 resolution | |
| SURGE PROTECTION | Surge Protection Module | Max. discharge capacity 5kA (hot-swappable) |
| INTERFACE | Cascade Port | 2 × RS485 for device cascading |
| USB Port | 1 × USB for WEB system upgrade | |
| BUTTONS | Physical Buttons | 1 × Enter/Exit/Setup multi-function button 1 × Scroll Up button 1 × Scroll Down button |
| CIRCUIT BREAKER | Brand | Liangxin |
| INSTALLATION | Mounting Type | Forward / Standard orientation |
| Chassis Color | Black | |
| Dimensions (W×H×D) | 485×400×112 mm (3U rack mount) | |
| ENVIRONMENT | Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering and Model Selection（订货选型） For more details, please feel free to contact us by phone or email for further information.
We are always at your service, ready to provide you with professional and attentive support.
We look forward to connecting with you!
Hotline: +86 512-67480468
Email: salina@kejia.com
Download
| File name | Product type | Download |
|---|---|---|
| JX-DN48 Smart Cabinet Power Distribution Box | Product Manual | Download |
